eUSB

The embedded USB (eUSB) module from Viking Technology provides a rugged, reliable and cost effective non-volatile memory solution to OEM customers in the Networking, Embedded and Industrial markets. eUSB modules are secure pluggable USB 2.0/3.0 devices with built-in ECC and global wear-leveling for exceptional reliability and product lifetime.

Viking eUSB modules are available in capacities up to 128GB and deliver performance up to 35 MB/s. Available in both industry standard, low profile, and custom versions, as well as 3.3V and 5V operation.

Product Brief Inquiry

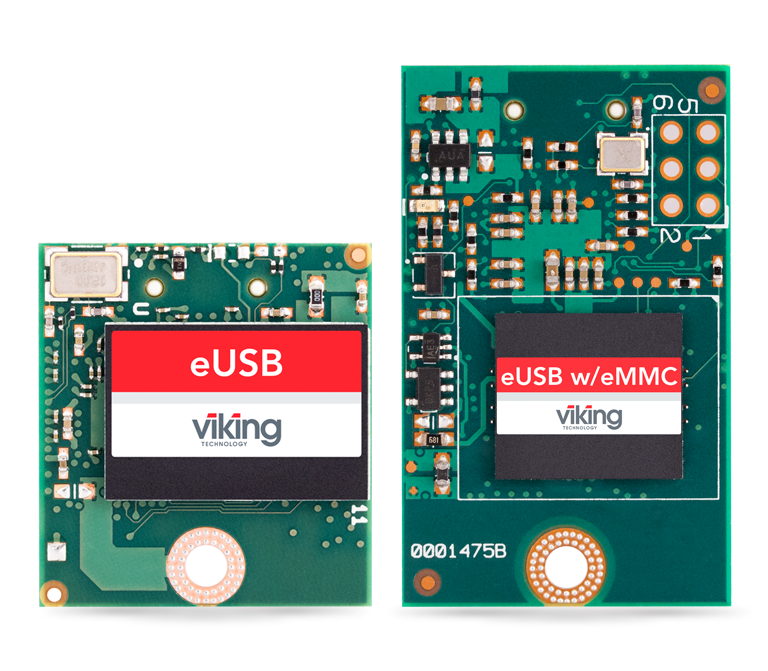

eUSB w/eMMC

eUSB (EMBEDDED USB)

INTERFACE

2.0/3.0 Support Icon

2.0/3.0 Support

RUGGEDIZED

Ruggedized

Enhanced & ruggedized storage for system requirements

INDUSTRIAL TEMP

Industrial Temperature icon

-40ºC to 95ºC

SPACE SAVING

Space Saving icon

Optimized with Customization

SECURE, RELIABLE, COST EFFECTIVE

The eUSB module is part of an entire family of industrial-grade embedded flash solutions from Viking designed to provide the right mix of capacity and performance and do so without compromise.

Capacity Performance Reliability Environmental Power
SLC/MLC – Up to 128GB Up to 35MB/s (Sustained Read) Embedded 8-bit ECC SHOCK – 1500g 5V Standard, 3.3V Optional
Up to 23MB/s (Sustained Write) >2,500,000 hours (MTBF) VIBRATION – 20g
USB 2.0/USB 3.0 (Interface) 10 years (Data Retention) OPERATING TEMP – 0°C to 70°C (Ctemp), -40°C to 85°C (Itemp), -40°C to 85°C (Non-Operating temp)
<1 in 1014 bits read (BER) ALTITUDE – 80,000 ft
HUMIDITY – 5% to 95%, non-condensing, relative
SAFETY/AGENCY/COMPLIANCE – FCC, CE, RoHS

EXTENDED FEATURES

    • Reduced size eUSB
    • Optimized for space constraint routers/switches
    • Available in iTemp & cTemp configurations
    • Cost effectiveness utilizing eMMC Flash
    • ECC and Data Management
    • Cost effective option

Performance

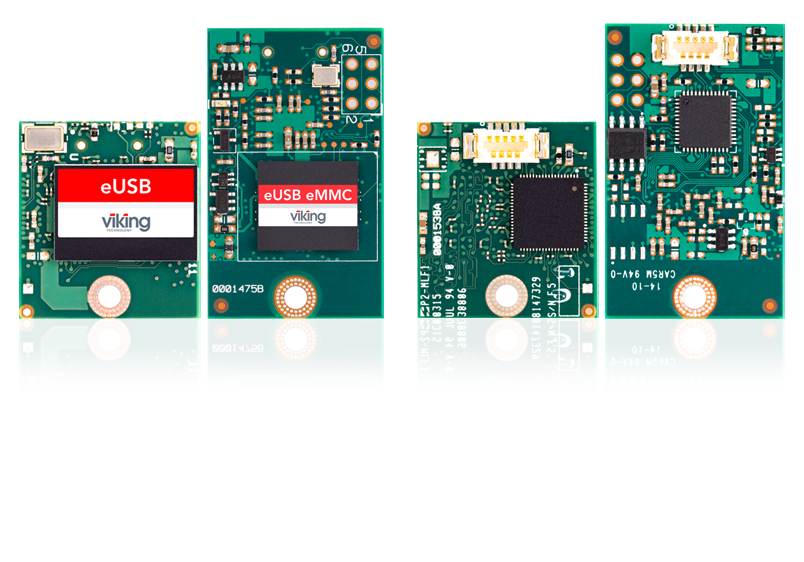

eUSB w/eMMC grouped

RELIABLE & RUGGED STORAGE SOLUTION

VIKING CUSTOMIZATION OPTIONS

  • Screw mounted for ruggedization
  • High endurance
  • Low-cost endurance alternative to SLC NAND
  • Extremely low cost alternative

MARKETS SERVED

Industrial Automation | Defense Electronics | Gaming | UAVs | Mapping | GPS | Surveillance

eUSB
FORM FACTOR INTERFACE TEMP CAPACITY PART NUMBER CONTROLLER NAND
eUSB USB 2.0 0ºC to +70ºC 8GB VRFUSB28192ACRB1 HyperstoneU8 TBD
eUSB USB 2.0 0ºC to +70ºC 4GB VRFUSB24096ACQB1 HyperstoneU8 TBD
eUSB USB 2.0 0ºC to +70ºC 256GB VRFUSB2256GACCS1 HyperstoneU8 TBD
eUSB USB 2.0 0ºC to +70ºC 128GB VRFUSB2128GACZTLS1 HyperstoneU8 TSB MLC
eUSB USB 2.0 0ºC to +70ºC 128GB VRFUSB2128GACZS* HyperstoneU8 TBD
eUSB USB 2.0 0ºC to +70ºC 64GB VRFUSB2064GACATLS1 HyperstoneU8 TSB MLC
eUSB USB 2.0 0ºC to +70ºC 65GB VRFUSB2064GACAS1 HyperstoneU8 TBD
eUSB USB 2.0 0ºC to +70ºC 65GB VRFUSB2064GACAMTL HyperstoneU8 TSB MLC
eUSB USB 2.0 0ºC to +70ºC 8GB VRFDUC3L8192ACQ3TH HyperstoneU8 TSB 24nm SLC
eUSB USB 2.0 0ºC to +70ºC 16GB VRFDUC3L016GACR3TH HyperstoneU8 TSB 24nm SLC
eUSB USB 2.0 0ºC to +70ºC 8GB VRFDUC38192ZCD0* eMMC TTM eMMC TTM
eUSB USB 2.0 0ºC to +70ºC 8GB VRFDUC38192ACQTH Hyperstone U8 TSB 24nm SLC
eUSB USB 2.0 0ºC to +70ºC 16GB VRFDUC3016GZCB0* eMMC TTM TSB BiCS 3D
eUSBLowProfile USB 2.0 0ºC to +70ºC 8GB VRFDUC3L8192ACQ3TH TSB 24nm SLC TSB BiCS 3D
eUSBLowProfile USB 2.0 0ºC to +70ºC 4GB VRFDUC3L4096YCH3A6 TSB 24nm SLC TSB BiCS 3D
eUSBLowProfile USB 2.0 0ºC to +70ºC 2GB VRFDUC3L2048YCE3A8 TSB 24nm SLC TSB BiCS 3D
eUSBLowProfile USB 2.0 -40ºC to +85ºC 30GB VRFDUC3L030GAISTH TSB 24nm SLC TSB BiCS 3D
eUSBLowProfile USB 2.0 0ºC to +70ºC 30GB VRFDUC3L030GACSTH TSB 24nm SLC TSB BiCS 3D
eUSBLowProfile USB 2.0 0ºC to +70ºC 16GB VRFDUC3L016GACR3TH TSB 24nm SLC TSB BiCS 3D
eUSBLowProfile USB 2.0 -40°C to +85°C 8GB VRFDUC38192AISTH TSB 24nm SLC TSB BiCS 3D
eUSBLowProfile USB 2.0 0ºC to +70ºC 8GB VRFDUC38192ACQTH TSB 24nm SLC TSB BiCS 3D
eUSBLowProfile USB 2.0 -40°C to +85°C 30GB VRFDUC3030GAISTH TSB 24nm SLC TSB BiCS 3D
eUSBLowProfile USB 2.0 0ºC to +70ºC 30GB VRFDUC3030GACSTH TSB 24nm SLC TSB BiCS 3D
eUSBLowProfile USB 2.0 -40°C to +85°C 16GB VRFDUC3016GAISTH TSB 24nm SLC TSB BiCS 3D
eUSBLowProfile USB 2.0 0ºC to +70ºC 16GB VRFDUC3016GACSTH TSB 24nm SLC TSB BiCS 3D
eMMC eMMC 0ºC to +70ºC 8GB VSFEMMC8192CWSF Samsung Samsung
eMMC eMMC 0ºC to +70ºC 256GB VSFEMMC256GCC1 Samsung Samsung
eMMC eMMC 0ºC to +70ºC 128GB VSFEMMC128GCC1 Samsung Samsung
eMMC eMMC 0ºC to +70ºC 64GB VSFEMMC064GCC1 Samsung Samsung
eMMC eMMC 0ºC to +70ºC 32GB VSFEMMC032GCCD Samsung Samsung
eMMC eMMC 0ºC to +70ºC 32GB VSFEMMC032GCC1 Samsung Samsung
eMMC eMMC 0ºC to +70ºC 16GB VSFEMMC016GCCD Samsung Samsung
