M.2 SSD

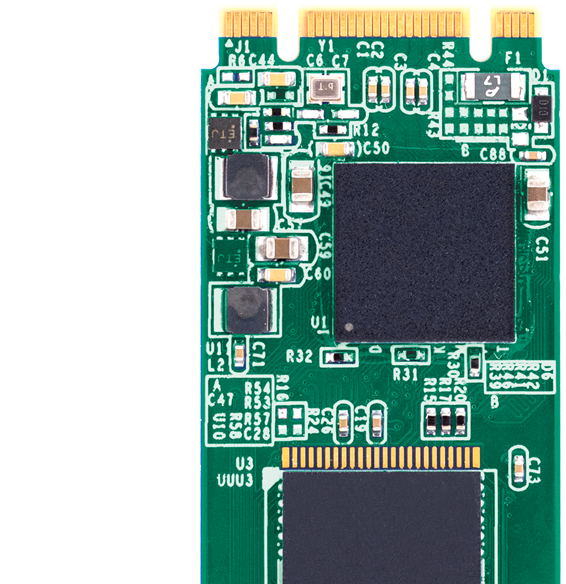

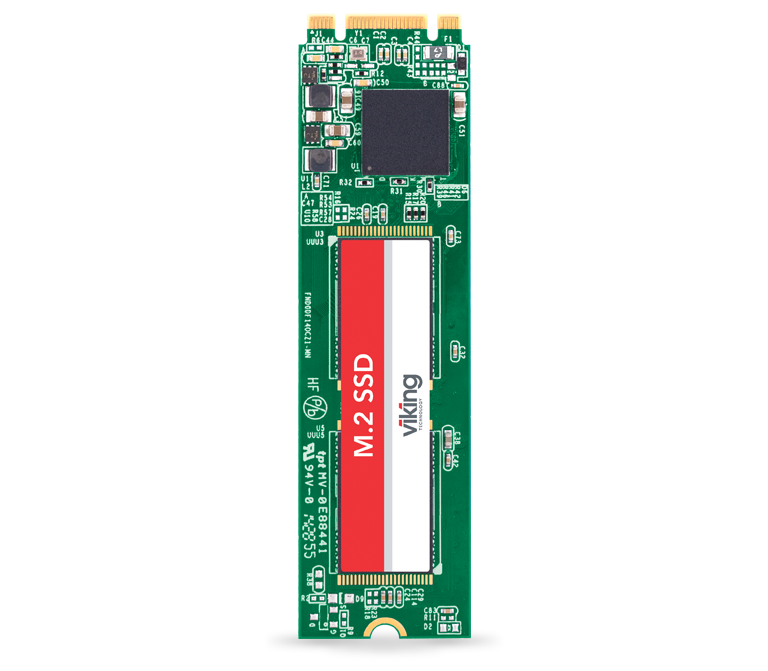

Viking Technology’s M.2 Solid State Drive (SSD) is a high-performance, high-capacity flash solution optimized for the embedded and server market.

The M.2 SSD is a caseless drive with either a SATA or PCIe/NVMe interface; delivering high-bandwidth READs and WRITEs at a fraction of the size of a standard 2.5 inch SSD. The thin form factor comes in a variety of sizes best fit for the customer’s system requirements.

Product Brief Inquiry
M.2 SSD

M.2 SOLID STATE DRIVE

ULTRA-HIGH PERFORMANCE

Icon High Performance

Thin form factor in a variety of sizes for increased performance & capacity

RUGGEDIZED

Ruggedized

Enhanced & ruggedized storage for system requirements

INCREASED PERFORMANCE & CAPACITY

M.2 is a new storage form factor optimized specifically for embedded solutions to increase overall performance and capacity.

Capacity Performance Reliability Environmental Power Dimensions
Up to 1TB Up to 430,000 IOPS (R) Endurance (SLC) – 10 DWPD SHOCK – 1000G (0.5ms), 50G (2ms) <2W – Active (Typical) 22mm x 42, 60, 80, 110mm
2,100MB/s (Sequential Read) Endurance (cMLC) – 1-3 DWPD VIBRATION – 2.16 grams (5 ~ 700Hz) - 3 axis
1,400MB/s (Sequential Write) OPERATING TEMP – 0°C to 70°C (Ctemp), -45°C to 85°C (Itemp)
SATA 6Gb/s or PCIe Gen3/NVMe (Interface) ALTITUDE – 80,000 ft
HUMIDITY – 10% to 80% (operating)
SAFETY/AGENCY/COMPLIANCE – FCC, CE, TUV

EXTENDED FEATURES

  • Client & Enterprise controller options
  • MLC/SLC/TLC support
  • Power fail protection on some form factors
  • Form factor options: 22mm x 110mm/80mm/60mm/42mm
  • Advanced SSD-Specific SMART command support
  • Low & High capacity form factor options
  • Data path protection, Encryption, Max Write performance
M.2 SSD

HIGH PERFORMANCE & HIGH CAPACITY

VIKING CUSTOMIZATION OPTIONS

Client and Enterprise options 3D NAND Options and SLC

  • Low capacity form factor 22mm x 42mm
  • High capacity form factor 22mm x 110mm
  • Form Factor options 22mm x (42, 60, 80, 110) mm



MARKETS SERVED

Servers | POS | Cache | Industrial | Mobile | Digital Signage | Boot Device

M.2 SSD
FORM FACTOR INTERFACE TEMP CAPACITY PART NUMBRR CONTROLLER NAND
M.2 PCIe 2280 0ºC to +70ºC 512GB VWFNP5512G2EHWW3 WD TSB BiCS 3D
M.2 PCIe 2280 0ºC to +70ºC 256GB VWFNP5256G2E5WW3 WD TSB BiCS 3D
M.2 PCIe 2280 0ºC to +70ºC 2000GB VWFNP5002T2ELWW4 WD TSB BiCS 3D
M.2 PCIe 2280 0ºC to +70ºC 1000GB VWFNP5001T2EFWW3 WD TSB BiCS 3D
M.2 PCIe 2280 0ºC to +70ºC 512GB VWFNP3512G2CFWWW3 WD TSB BiCS 3D
M.2 PCIe 2280 -40°C to +85°C 1920GB VRFNP51T92JILWW4 SM2262 TSB BiCS 3D
M.2 PCIe 22110 0ºC to +70ºC 960GB VSFNP7960GHC4WSA Samsung Samsung
M.2 PCIe 22110 0ºC to +70ºC 3840GB VSFNP73T84HC8WSA Samsung Samsung
M.2 PCIe 22110 0ºC to +70ºC 1920GB VSFNP71T92HC8WSA Samsung Samsung
M.2 SATA 2280 0ºC to +70ºC 512GB VWFEM5512G2CHWW3 SM2259 TSB BiCS 3D
M.2 SATA 2280 0ºC to +70ºC 256GB VWFEM5256G2C5WW3 SM2259 TSB BiCS 3D
M.2 SATA 2280 0ºC to +70ºC 1000GB VWFEM5001T2CFWW3 SM2259 TSB BiCS 3D
M.2 SATA 2242 -40ºC to +85ºC 480GB VRFEM6480GEIFWT3 SM2259 TSB BiCS 3D
M.2 SATA 2242 -40ºC to +85ºC 480GB VRFEM6480GEIFWT3 SM2259 TSB BiCS 3D
M.2 SATA 2242 -40ºC to +85ºC 480GB VRFEM6480GEIFWT3 SM2259 TSB BiCS 3D
M.2 SATA 2242 0ºC to +70ºC 480GB VRFEM6480GECFWT3 SM2259 TSB BiCS 3D
M.2 SATA 2242 -40ºC to +85ºC 240GB VRFEM6240GEIHWT3 SM2259 TSB BiCS 3D
M.2 SATA 2242 0ºC to +70ºC 240GB VRFEM6240GECHWT3 SM2259 TSB BiCS 3D
M.2 SATA 2242 -40ºC to +85ºC 120GB VRFEM6120GEI5WT3 SM2259 TSB BiCS 3D
M.2 SATA 2242 -40ºC to +85ºC 120GB VRFEM6120GEI5WT3 SM2259 TSB BiCS 3D
M.2 SATA 2242 -40ºC to +85ºC 120GB VRFEM6120GEI5WT3 SM2259 TSB BiCS 3D
M.2 SATA 2242 0ºC to +70ºC 120GB VRFEM6120GEC5WT3 SM2259 TSB BiCS 3D
M.2 SATA 2242 -40ºC to +85ºC 60GB VRFEM6060GEI5WT3 SM2259 TSB BiCS 3D
M.2 SATA 2242 -40ºC to +85ºC 60GB VRFEM6060GEI5WT3 SM2259 TSB BiCS 3D
M.2 SATA 2242 -40ºC to +85ºC 60GB VRFEM6060GEI5WT3 SM2259 TSB BiCS 3D
M.2 SATA 2242 0ºC to +70ºC 60GB VRFEM6060GEC5WT3 SM2259 TSB BiCS 3D
M.2 SATA 2280 -40ºC to +85ºC 960GB VRFEM5960GEIFWT3 SM2259 TSB BiCS 3D
M.2 SATA 2280 -40ºC to +85ºC 480GB VRFEM5480GEIHWT3 SM2259 TSB BiCS 3D
M.2 SATA 2280 -40ºC to +85ºC 240GB VRFEM5240GEI5WT3 SM2259 TSB BiCS 3D
M.2 SATA 2280 -40ºC to +85ºC 120GB VRFEM5120GEI5WT3 SM2259 TSB BiCS 3D
M.2 SATA 2280 -40ºC to +85ºC 60GB VRFEM5060GEI5WT3 SM2259 TSB BiCS 3D
M.2 SATA 2260 -40ºC to +85ºC 960GB VRFEM4960GEIFWT3 SM2259 TSB BiCS 3D
M.2 SATA 2260 0ºC to +70ºC 960GB VRFEM4960GECFWT3 SM2259 TSB BiCS 3D
M.2 SATA 2260 -40ºC to +85ºC 480GB VRFEM4480GEIHWT3 SM2259 TSB BiCS 3D
M.2 SATA 2260 0ºC to +70ºC 480GB VRFEM4480GECHWT3 SM2259 TSB BiCS 3D
M.2 SATA 2260 -40ºC to +85ºC 240GB VRFEM4240GEI5WT3 SM2259 TSB BiCS 3D
M.2 SATA 2260 0ºC to +70ºC 240GB VRFEM4240GEC5WT3 SM2259 TSB BiCS 3D
M.2 SATA 2260 -40ºC to +85ºC 120GB VRFEM4120GEI5WT3 SM2259 TSB BiCS 3D
M.2 SATA 2260 -40ºC to +85ºC 120GB VRFEM4120GEI5WT3 SM2259 TSB BiCS 3D
M.2 SATA 2260 0ºC to +70ºC 120GB VRFEM4120GEC5WT3 SM2259 TSB BiCS 3D
M.2 SATA 2260 -40ºC to +85ºC 60GB VRFEM4060GEI5WT3 SM2259 TSB BiCS 3D
M.2 SATA 2260 -40ºC to +85ºC 60GB VRFEM4060GEI5WT3 SM2259 TSB BiCS 3D
M.2 SATA 2260 0ºC to +70ºC 60GB VRFEM4060GEC5WT3 SM2259 TSB BiCS 3D
