SD & microSD

Viking Technology Secure Digital Cards (SD) and microSD cards are powerful, highest capacity memory card that delivers maximum speed for performance, reliability, and security to the most demanding of embedded solutions.

These removeable cards are optimized for the embedded market with high-shock tolerance, high-temperature configurations, and ruggedization for extreme environments.

Product Brief Inquiry

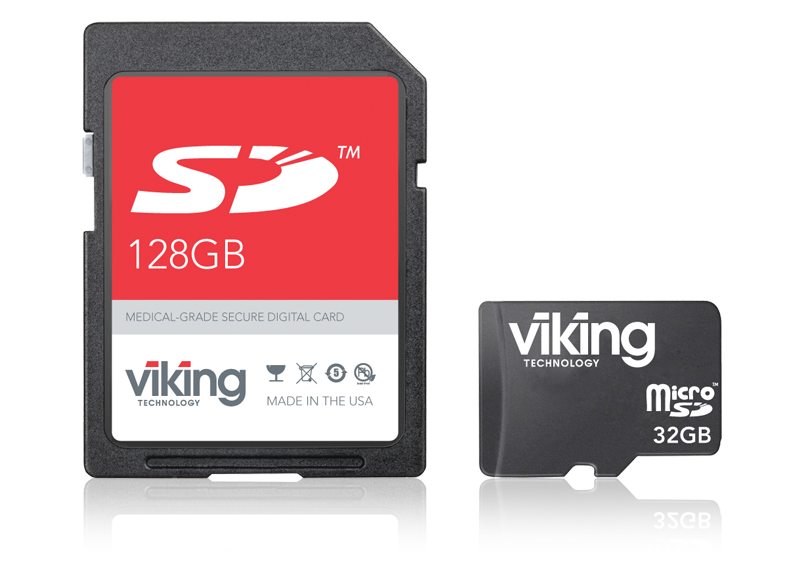

SD & microSD card

SD & microSD CARDS

HIGH PERFORMANCE

Icon High Performance

Thin form factor in a variety of sizes for increased performance & capacity

RUGGEDIZED

Ruggedized

Enhanced & ruggedized storage for system requirements

INDUSTRIAL TEMP

Industrial Temperature icon

-40ºC to +95ºC

DATA SECURITY

Data Security icon

Security for the most demanding of embedded solutions

SECURE, POWERFUL & HIGH-CAPACITY

Viking’s removable cards are optimized for the embedded market and support both commercial and industrial temperatures.

Capacity Performance Environmental
MLC/SLC – 8GB to 128GB Up to 270MB/s (R) SHOCK – 1000G (0.5ms), 50G (2ms)
Up to 250MB/s (W) VIBRATION – 2.16 grams (5 ~ 700Hz) – 3 axis
OPERATING TEMP – 25ºC to 85ºC (Itemp) 0ºC to -70ºC (Ctemp)
ALTITUDE – 80,000 ft
HUMIDITY – 5% to 95% (operating)

EXTENDED FEATURES

  • Capacities up to 128GB
  • Superior wear leveling
  • High Performance
  • SD Security specs v. 2.0
  • Mechanical write protection switch
  • Supports commercial and industrial temperature

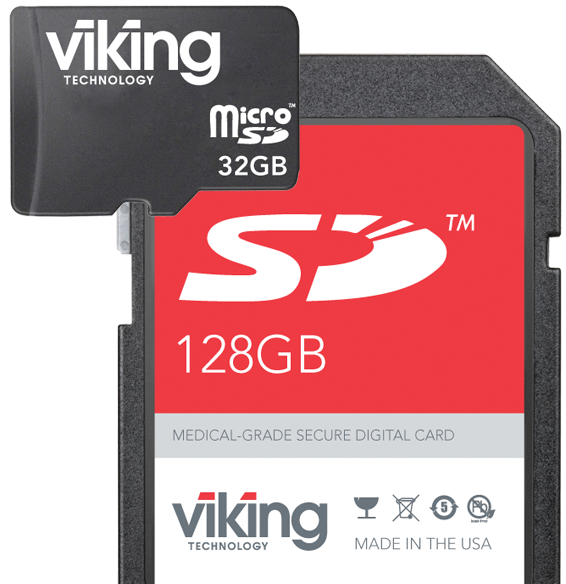

SD & microSD card

EMBEDDED MARKET OPTIMIZED

VIKING CUSTOMIZATION OPTIONS

  • Removable Storage
  • Industrial Temperature
  • Available in SLC Configuration
  • Medical-Grade
  • Conformal Coated Option
  • Ultra-Small Form Factor



MARKETS SERVED

Servers | Cache | Data Acceleration | Factory Automation | Medical Equipment | Boot Device | Switches | Data Logging

SD & microSD card
FORM FACTOR INTERFACE TEMP CAPACITY PART NUMBER CONTROLLER NAND
SD Card microSD 0ºC to +70ºC 32GB VWUSD032GCEBMML WD SanDisk MLC
SD Card microSD -25ºC to +85ºC 32GB VWUSD032GCE1WW3C WD TSB BiCS 3D
SD Card microSD 0ºC to +70ºC 32GB VWUSD032GCE1WW3C WD TSB BiCS 3D
SD Card microSD 0ºC to +70ºC 8GB VWFUSD8192CEWWW WD TSB BiCS 3D
SD Card microSD -25ºC to +85ºC 256GB VWFUSD256GCECMWL WD SanDisk MLC
SD Card microSD -25ºC to +85ºC 128GB VWFUSD128GCEZMWL WD SanDisk MLC
SD Card microSD -25ºC to +85ºC 64GB VWFUSD064GCEAMWL WD SanDisk MLC
SD Card Full Size SD -40°C to +85°C 128GB VWFSD3128GCIZMWL WD SanDisk MLC
SD Card Full Size SD -25ºC to +85ºC 128GB VWFSD3128GCEZMWL WD SanDisk MLC
SD Card Full Size SD -40°C to +85°C 64GB VWFSD3064GCIAMWL WD SanDisk MLC
SD Card Full Size SD -25ºC to +85ºC 64GB VWFSD3064GCEAMWL WD SanDisk MLC
SD Card microSD -25ºC to +85ºC 64GB VAFUSD064GCEAMTL SMI3268 TSB BiCS 3D
SD Card microSD -25ºC to +85ºC 16GB VAFUSD016GCEDMTL PS8210 TSB BiCS 3D
SD Card Full Size SD -25ºC to +85ºC 64GB VAFSD3064GCC5MTL SMI3268 SanDisk MLC
SD Card Full Size SD -25ºC to +85ºC 32GB VAFSD3032GCCBMTL SMI3268 SanDisk MLC
