CMM-NVDIMM DDR4

Compute Express Link™ (CXL™) is a high–speed interconnect offering coherency and memory semantics using high-bandwidth low-latency connectivity between the host processor and devices including memory based modules. CXL leverages the PCI-Express™ (PCIe™) physical layer for high-speed connectivity between memory and host processors. By taking advantage of the existing architecture found in servers CXL promises to provide transformational capability without incurring additional investment in infrastructure. Viking’s expertise is suited for developing products in this space.

Viking Technology is collaborating with industry leaders to develop advanced products using the CXL protocol. This introductory product is designed to deliver persistent memory expansion, offering scalable solutions for extending memory capacity. This device can be applied to local host platforms or integrated into a memory pooling appliance, enabling versatile options for enterprise memory architecture. Transform your data access with pioneering memory innovation.

Product Brief Inquiry

HIGH-BANDWIDTH LOW-LATENCY CONNECTIVITY

APPLICATIONS

Applications icon

Military, Defense & Aerospace Deployments

SPACE SAVING

Space Saving icon

SWaP Optimized with Customization

SEAMLESS, HIGH-PERFORMANCE MEMORY EXPANSION

Up to 64 GB DDR4 memory capacity, 128 GB DDR4 in early 2025, with PCIe Gen5 Add-In Card (AIC), Full Height, Half Length, consisting of up to four DDR4 NVRDIMMs. Viking’s expertise in the CXL space enables seamless integration without major infrastructure investments.

Performance Configuration Capacity NVDIMM Speed Backup Energy
TBD 4 NVDIMMs 64 GB 2666 Platform provided
TBD 4 NVDIMMs 64 GB 2666 Integrated
TBD 2 NVDIMMs 32 GB 2933 Integrated
TBD 1 NVDIMM 16 GB 2933 Integrated
TBD 4 RDIMMs 64 GB 2666 N/A
TBD 2 RDIMMs 32 GB 2933 N/A
TBD 1 RDIMM 16 GB 2933 N/A

EXTENDED FEATURES

  • CXL standard Type 3 memory expander Rev 2.0 with persistent memory capability
  • DDR4 SDRAM NVDIMM compliant to SNIA standard
  • Load/Store access to Storage Class Memory
  • Supports CXL Global Persistent Flush
  • Data Persistence across power loss

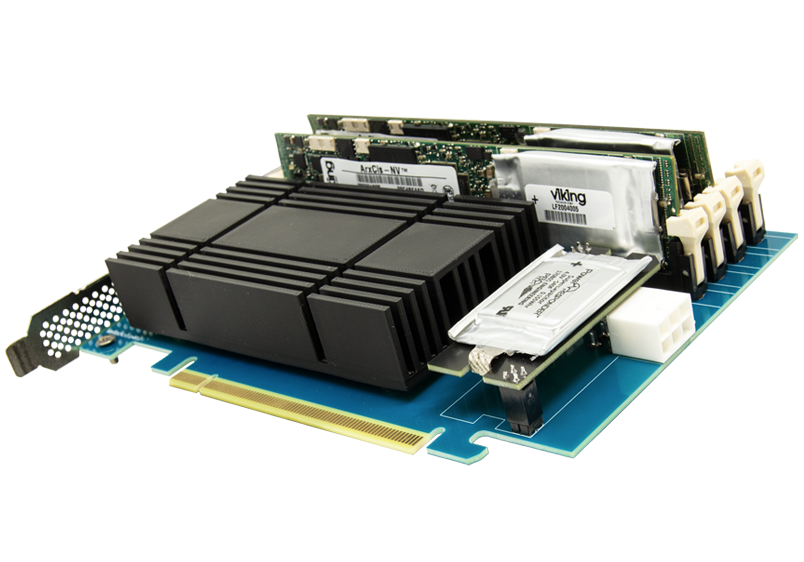

CXL CMM-NVDIMM DDR4 Memory Module

TRANSFORMING DATA ACCESS

RELIABILITY, AVAILABILITY & SERVICEABILITY (RAS)

  • Supports CXL Global Persistent Flush
  • Data Persistence across power loss
  • Self-contained energy source for module data back during power failure
  • High-reliability CXL with end-to-end robust data error containment
  • End-to-end data integrity protection & ECC protection on internal and external memory
  • CXL & NVDIMM diagnostics
  • Secure boot & secure firmware update



MARKETS SERVED

Artificial Intelligence | Cloud Infrustructure | HBM & HPC | Data Centers | Enterprise Storage | Telecommunications & 5G Infrastructure | IoT & Edge Computing

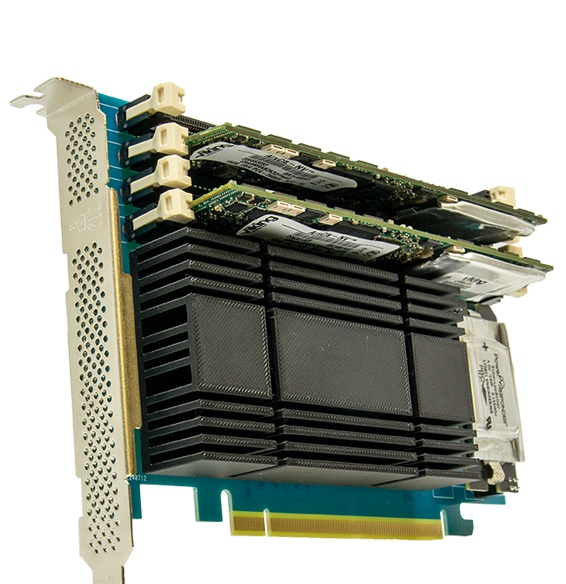

CXL NVDIMM DDR4 angled 2

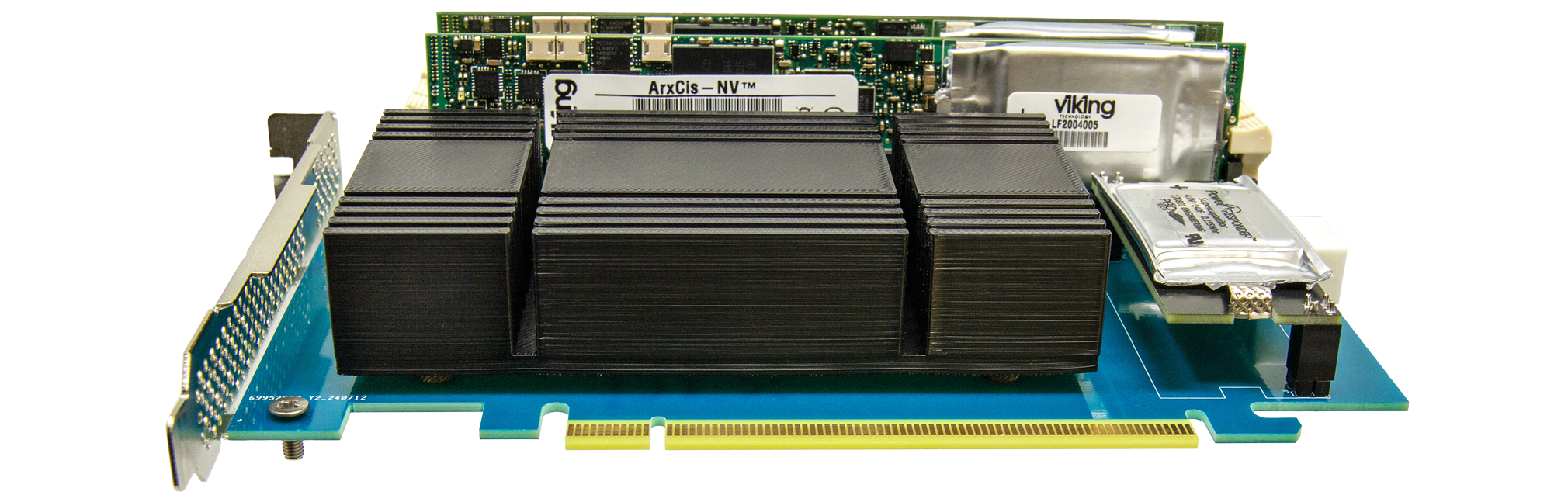

CXL NVDIMM module
  • In-House Sustaining Qualification & Validation
  • Key Strategic Advantage for OEM Customers
  • Relieves Burden on Customer Engineering Resources
  • Enhanced & Customized Testing
  • Locked BOM under customer PCN control
  • Locked BOM
  • Environmental Stress Screening
  • Long-Term Supply Support
